Diablo Item #2608644440

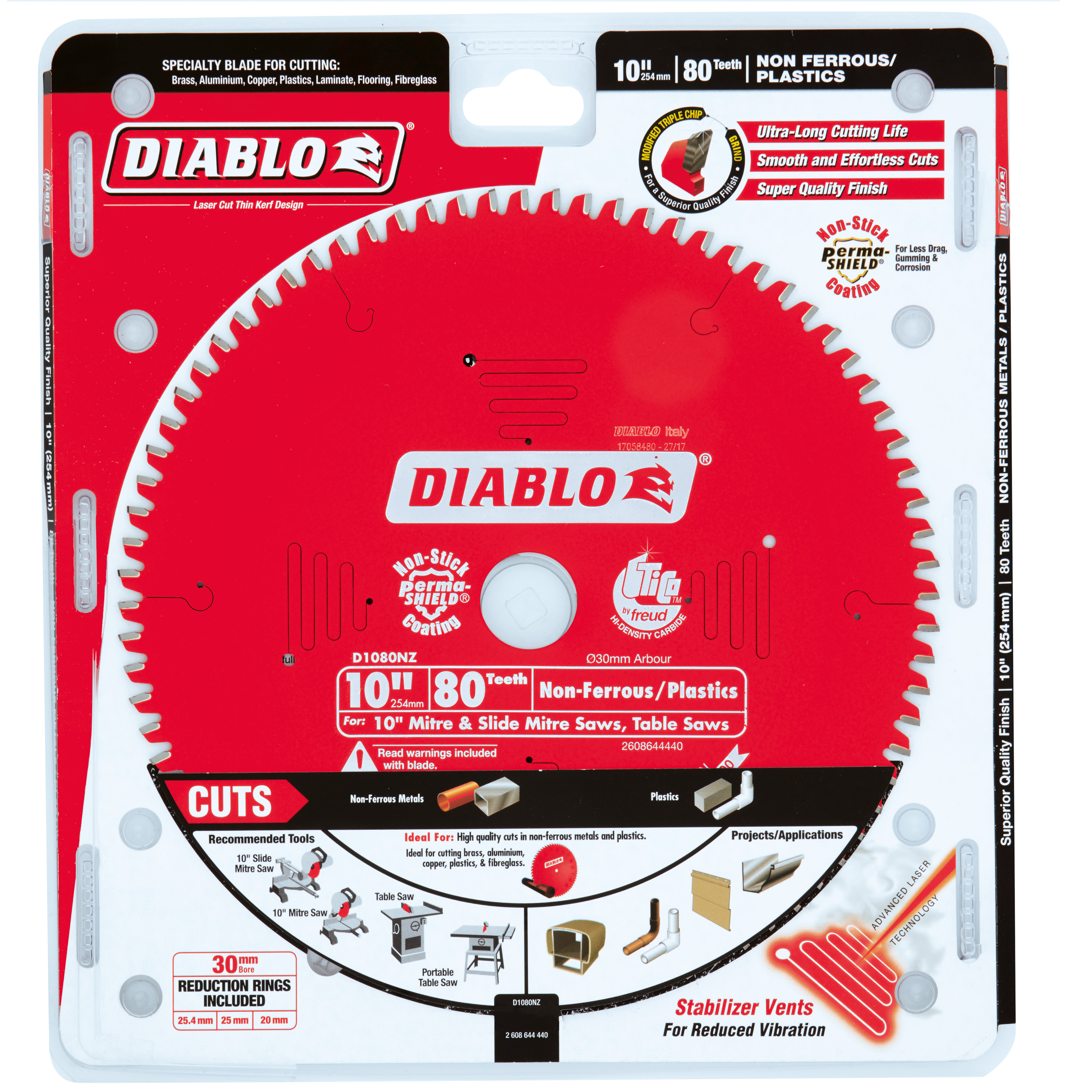

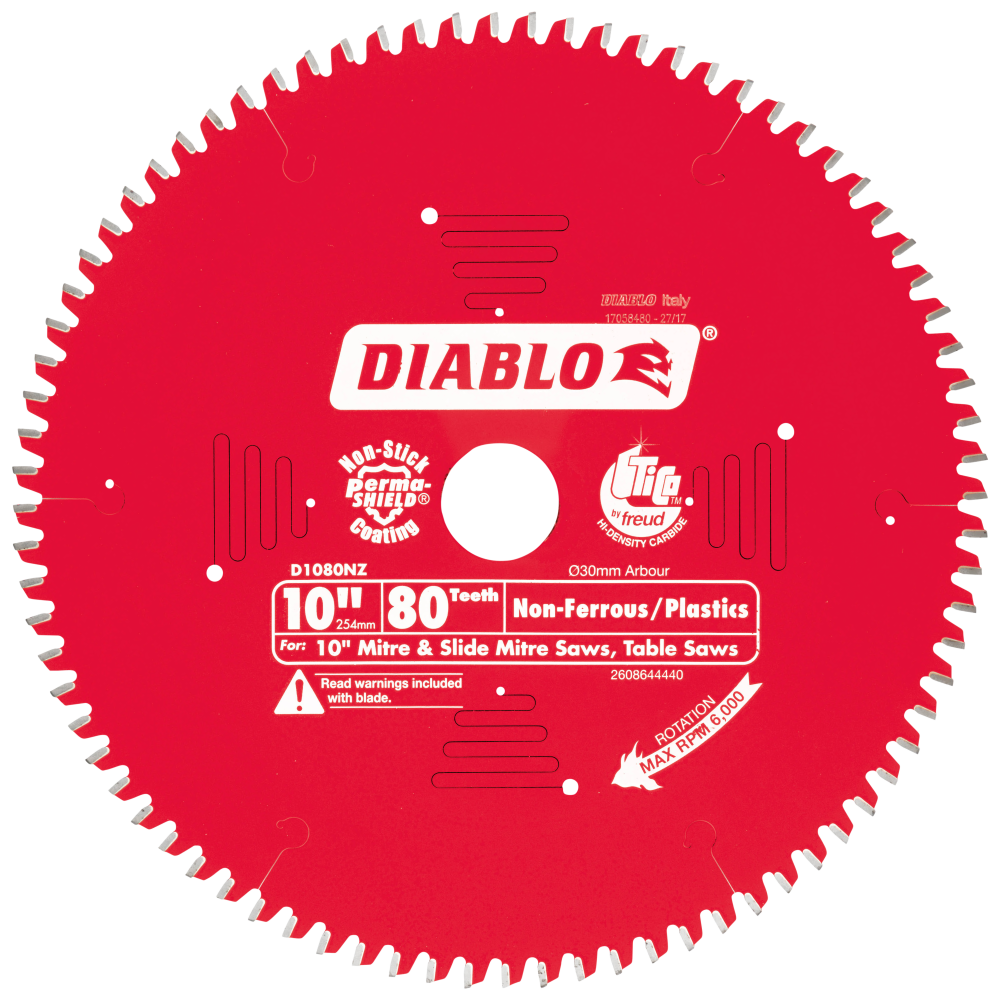

10 in. / 254mm 80T Non-Ferrous/Plastics Saw Blade

10 in. / 254mm 80T Non-Ferrous/Plastics Saw Blade #2608644440
TOOLS
Mitre Saw Mitre Saw
Portable Table Saw Portable Table Saw
Stationary Table Saw Stationary Table Saw
CUTS
Non-Ferrous Non-Ferrous
Aluminium Aluminium
Copper Copper
Brass Brass
Plastics Plastics
Item #2608644440
Diablo

10 in. / 254mm 80T Non-Ferrous/Plastics Saw Blade

Non-Ferrous Metals
  • TiCo Hi-Density Carbide specifically designed for non-ferrous, plastics, & laminates
  • Perma-Shield Non-Stick Coating reduces friction, heat build up which adds to longer blade life
  • Tri-metal shock resistant brazing allows carbide tips to withstand extreme impact for maximum durability
  • Triple Chip Grind (TCG) Tooth Design
  • Super thin laser cut kerf for fast, durable, and clean cuts
Where to Buy
See More Specs
More options
Diameter
6.5" / 165mm
7.25" / 184mm
10" / 254mm
12" / 305mm

Product

Overview

Diablo's specialty Non-Ferrous/Plastics thin kerf blade has a Triple Chip Grind (TCG) Tooth Design for long life and a clean, burr-free finish. Diablo's blade is ideal for on-the-job cutting of nonferrous metal such as copper pipe, aluminium extrusions, brass plate, etc.

  • TiCo Hi-Density Carbide specifically designed for non-ferrous, plastics, & laminates
  • Perma-Shield Non-Stick Coating reduces friction, heat build up which adds to longer blade life
  • Tri-metal shock resistant brazing allows carbide tips to withstand extreme impact for maximum durability
  • Triple Chip Grind (TCG) Tooth Design
  • Super thin laser cut kerf for fast, durable, and clean cuts
Ideal For: High quality cuts in of nonferrous metals including copper pipe, aluminium, brass, and also rigid plastics
Suggested Projects: Trim, Remodeling/Demolition

Technical

Specifications

  • Diameter 10" / 254mm
  • Bushings 25.4mm, 25mm, 20mm
  • Kerf 2.3
  • Plate 1.8
  • Teeth 80
  • Application Non-Ferrous Metals
  • Arbor 30mm
  • Item # 2608644440
  • Barcode 3165140897259
  • Short Code D1080NZ

Downloads

Chipper Set-Up & Configuration Guide
